Siv 1291nmTx / 1311nmRx wavelengths ntawm LC connector. Qhov no bidirectional chav tsev yuav tsum tau siv nrog lwm transceiver los yog network ntaus ntawv nrog ib tug complementary wavelength. Raws li tau teev tseg los ntawm QSFP28 MSA, digital diagnostics kuj tau muab los ntawm I2C interface kom tso cai rau kev nkag mus rau lub sijhawm ua haujlwm tsis muaj sijhawm. Cov yam ntxwv no ua rau qhov yooj yim-rau-nruab, kub-swappable transceiver haum rau ntau yam kev siv xws li 100G Ethernet, cov ntaub ntawv chaw thiab chaw cia khoom siv network.
|
SPE |

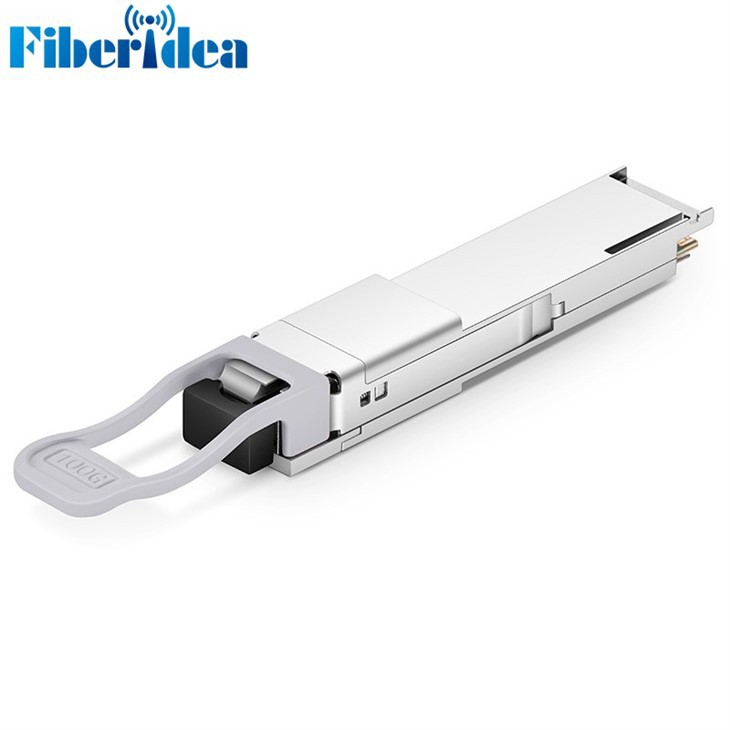

QSFP28 100G BIDI 1291-1311 20km |
|
PN |
QSFP28-100G-BX20-U |
|
Form Factor |
QSFP28 |
|
Max Data Rate |
103.125Gbps (4x 25.78Gbps) |
|
Lub wavelength |
1291-1311nm |
|
Max Kab nrug deb |
20km ua |
|
Txuas |
Simplex LC |
|
Media |
SMF |
|
Hom Transmitter |
DFB |
|
Receiver hom |
PIN |
|
TX Power |
-4.3 ~ 4.5dBm |
|
Txais Reflectance |
-14.5dBm |
|
Kev siv fais fab |
Tsawg dua lossis sib npaug li 5W |
|
Kub |
-20 rau 85 degree |
|
DDM/DOM |
Txhawb nqa |
|
Cov txheej txheem |
QSFP28 MSA |
|
Warranty |
3 Xyoo |
|
Adaim ntawv thov |
100GBASE Ethernet, Data Center |
|
Hom pob |
nruab nrab packing, khw muag khoom packing, yas packing, thawv thawv, thiab lwm yam |
|
Services |
OEM/ODM |
|
Stxaus |
Muaj |
|
Supply |
Hauv Tshuag |
Cim npe nrov: qsfp28 100g bx20 bidi 1291-1311 20km, Tuam Tshoj qsfp28 100g bx20 bidi 1291-1311 20km manufacturers, hoobkas
