Khoom Taw qhia
|
Yam khoom qauv |

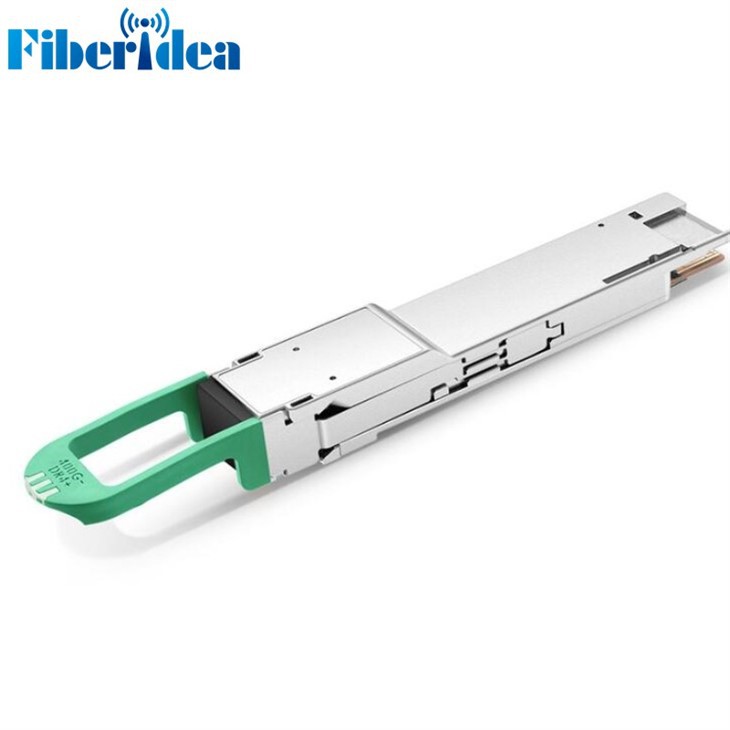

400G QSFP-DD FR4 |
|
Form Factor |
QSFP-DD |
|
Max Data Rate: |
425Gbps (4 × 106.25Gb/s) |
|
Hom kab |
SMF |
|
Lub wavelength |
1310nm ua |
|
Hom Transmitter |
CWDM EML |
|
Max Kab nrug deb |
2km ua |
|
Txuas |
LC |
|
TX Power |
-3.2 ~ 4.4dBm |
|
RX Sensitivity |
-4.6dBm |
|
Warranty |
2 Xyoo |
|
Qhov kub thiab txias |
0 rau 70 degree |
|
Kev siv fais fab |
Tsawg dua los yog sib npaug rau 12W |
Nta
- Txhawb 425Gb / s aggregate ntsis tus nqi
- Digital Diagnostics Monitoring Interface
- Ua-hauv 400G PAM4 DSP
- Qhov siab tshaj plaws txuas ntev ntawm 2km SMF nrog KP-FEC
- Uncooled 4 channels 1310nm EML
- 4 channel PIN yees duab ntes array
- TDECQ<3.4dB
- Ib leeg MPO12 receptacle
- QSFP-DD MSA ua raws
- Ua raws li 100G Lambda MSA
- 4 CWDM kab MUX/DEMUX tsim
- 8x53.125Gb/s PAM4 hluav taws xob sib cuam tshuam (400GAUI-8)
- Kev siv hluav taws xob ntau tshaj 12W
- LC Duplex connector
- Mus txog 2km kis ntawm ib hom fiber ntau nrog FEC
- Ib leeg 3.3V fais fab mov
- Kub Pluggable QSFP-DD daim ntawv foos
- Kev lag luam ua haujlwm kub qhov ntau: 0 ~ 70 degree
- Raws li RoHS
Daim ntawv thov
Siv hauv 400G Ethernet, Infiniband interconnects, DCI, thiab lwm yam.
