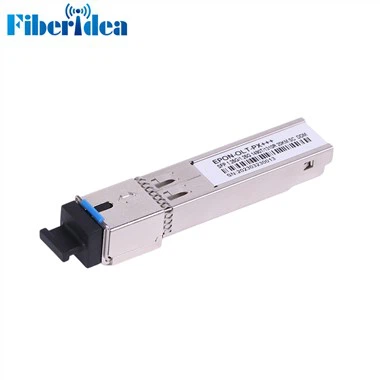

Fiberidea SFP optical transceiver yog qhov kub pluggable module thiab ntim me me uas txhawb nqa SONET, fiber-optic channels, Gigabit Ethernet, thiab lwm yam qauv kev sib txuas lus.
Nws txhawb nqa cov ntaub ntawv tus nqi ntawm 2.5Gbps thiab 40km kis nrug deb nrog SMF.
Lub module yog tsim los rau ib hom fiber ntau thiab ua haujlwm ntawm nominal wavelength ntawm 1310nm / 1550nm.
Nta
● Qhov deb mus txog 40KM
● Ua haujlwm cov ntaub ntawv tus nqi mus txog 2.125 / 2.5Gbps
● 1310nm / 1550nm DFB LD Transmitter, 1310nm / 1550nm PIN-TIA
● Ib leeg 3. 3V fais fab mov thiab TTL Logic Interface
● LC Connector Interface
● Kub Pluggable
● Kev Ua Haujlwm Kub: 0 degree ~ ntxiv rau 70 degree
● Ua raws li MSA SFP Specification, QSFP ntxiv rau MSA Raws Cai, CPRI, eCPRI
●OEM lossis ODM: Txais, siv tau rau optical fiber ntau keyboards ntawm txhua hom.
● Warranty: 3 Xyoos
● Qauv: Muaj
|
Qauv nab npawb |
2.5G 1310nm 40KM lc SFP |
Qhov Chaw Keeb Kwm |
Tuam Tshoj |
|
Hom Lub Npe |
Fiberidea |
Ib hom Fiber |
Yog lawm |
|
Multi-Mode Fiber ntau |
N/S |
Warranty |
3 xyoo |
|
Tau tshaj OEM Tshooj Naj Npawb |
/ |
FIBERTOP Tshooj Naj Npawb |
SFP |
|
Form Factor |
SFP |
Cov ntaub ntawv tus nqi |
2.5 Gb/s |
|
Lub wavelength |
1310 NIM |
Hom Fiber |
SMF |
|
Max nrug |
40 KM |
Optical Components |
DFB/ISO/PIN |
|
Transmitter zog |
{0}} ~ 0dBm |
Extinction ratio |
>9. 0dB |
|
Tus txais rhiab heev |
< -23 Bm |
Txais Kev Tshaj Tawm |
>-1dBm |
|
Txuas |
Ob chav LC |
Digital Diagnostic Monitoring |
Yog lawm |
|
Ib puag ncig |
Kev khiav hauj lwm: 0 degree rau 70 degree |
Qhov hnyav |
0.25 kg |
|
Daim ntawv thov |
2.5Gbps Optical systems |
Ua raws |
IEC/EN 61000-4-2, |
Adaim ntawv thov
