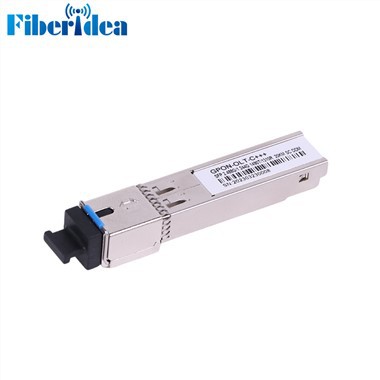

2.5G GPON C ntxiv rau SFP 20km
■SFP, luv luv rau Daim Ntawv me me-qhov tseem ceeb Pluggable, aka Mini-GBIC, yog lub compact optical transceiver module siv hauv kev sib txuas lus kho qhov muag. SFP transceiver modules yog tsim los txhawb SONET / H, Fast Ethernet, Gigabit Ethernet, Fiber Channel thiab lwm yam qauv kev sib txuas lus. Wanglink tsim thiab muab ntau yam ntawm SFP transceiver modules uas tuaj yeem hloov kho.
■ Ib leeg-fiber bidirectional kub-swappable SFP nrog SC / UPC interface
■ Txog 2.5Gbps kev khiav hauj lwm tus nqi
|
Parameter |
Chav tsev |
Min. |
Hom |
Max. |
|
Transmitter |
||||
|
TX Central Wavelength |
nm |
1480 |
1490 |
1500 |
|
Spectral dav (-20dB) |
nm |
|
|
1 |
|
Sab Hom Txhaum Cai (SMSR) |
dB |
30 |
|
|
|
Mean Launched Fais Fab |
dBm ib |
1.5 |
|
5 |
|
Lub Hwj Chim Loj (TX Off) |
dBm ib |
|
|
-45 |
|
Extinction Ratio |
dB |
8.2 |
|
|
|
Optical Return Poob Tolerance |
dB |
-12 |
|
|
|
Transmitter thiab dispersion txim |
dB |
|
|
1 |
|
Transmitter Mask (PRBS223-1& 2.488G) |
Ua raws li ITU-T G.984.2 |
|||
|
Tus txais |
||||
|
Txais Wavelength |
nm |
1290 |
1310 |
1330 |
|
Sensitivity(PRBS223-1 & 1.244G,ER=10,BER<10-10) |
dBm ib |
|
|
-28 |
|
Overload(PRBS223-1&1.244G,ER=10,BER<10-10) |
dBm ib |
-8 |
|
|
|
Receiver Burst Hom Dynamic Range |
dB |
15 |
|
|
|
Damage Threshold rau Receiver |
dBm ib |
5 |
|
|
|
SD Assert Level |
dBm ib |
|
|
-30 |
|
SD De-assert Level |
dBm ib |
-45 |
|
|
|
SD Hysteresis |
dB |
0.5 |
|
6 |
|
WDM Lim cais rau 1550nm |
dB |
38 |
|
|
|
WDM Lim cais rau 1650nm |
dB |
35 |
|
|
|
Hluav taws xob Interface yam ntxwv |
||||
|
Data Input Swing Differential/TX |
mV |
200 |
- |
2000 |
|
Cov ntaub ntawv tso zis Swing Differential/RX |
mV |
400 |
|
1600 |
|
Hnub sib txawv Impedance |
Ω |
90 |
100 |
110 |
|
LVTTL tso zis siab |
V |
2.4 |
|
Vcc |
|
LVTTL tso zis tsawg |
V |
0 |
|
0.4 |
|
LVTTL Input Siab |
V |
2 |
|
Vcc plus 0.3 |
|
LVTTL Input Tsawg |
V |
0 |
|
0.8 |
|
Lub sijhawm yam ntxwv |
||||
|
Lub sijhawm tiv thaiv (Tg) |
ns |
25.6 |
|
|
|
Pib dua Pulse Dav (Tr) |
ns |
|
|
12.8 |
|
Pib dua ncua sij hawm (Trd) |
ns |
|
|
12.8 |
|
Lub Sijhawm Txais Txais (Tp) |
ns |
|
|
140 |
|
SD Assert Time (TSDA) |
ns |
|
|
100 |
|
SD De-assert Time (TSDD) |
ns |
|
|
12.8 |
|
RSSI Trigger Delay (Ttd) |
ns |
25 |
|
|
|
RSSI Trigger Pulse Width (Tw) |
ns |
500 |
|
|
|
Internal I2C ncua (Twait) |
peb |
|
|
500 |
