2.5G Access 10G Uplink Layer 3 Hloov

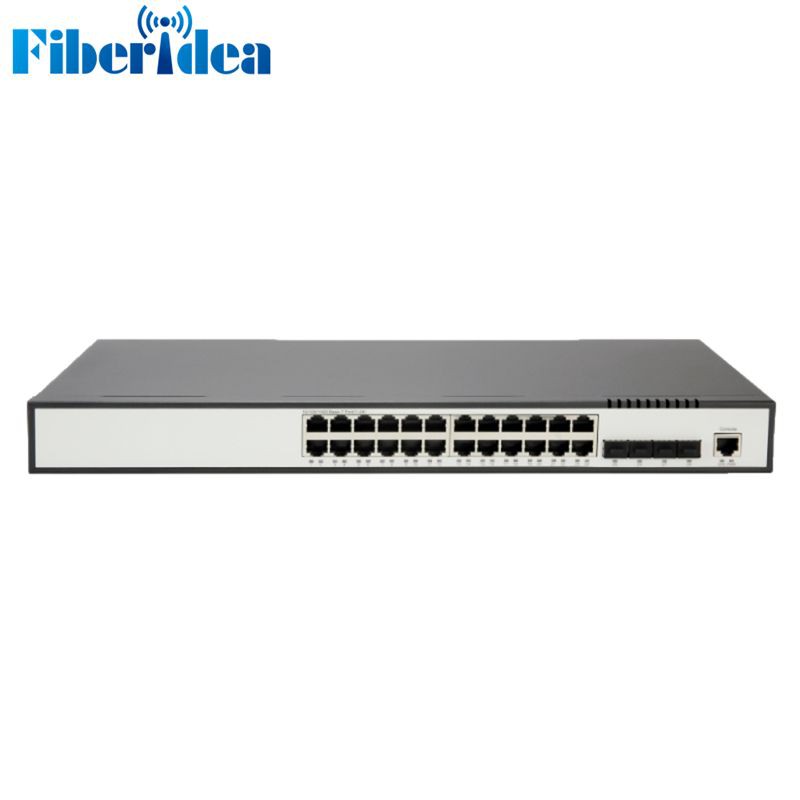

HS5750-30TX hloov yog tus cab kuj-qib metro Txheej 3 Ethernet hloov. Nws yog taw qhia rau kev lag luam tes hauj lwm ntawm ntau qhov ntsuas thiab cov neeg siv khoom siv, thiab tuaj yeem ua tau raws li qhov yuav tsum tau ua kom muaj txiaj ntsig 2.5G nkag mus thiab 10G uplink. Nws kuj tseem txhawb nqa qhov zoo thiab tsis zoo DC tawm tswv yim tiv thaiv kom tsis txhob hlawv. Tsis muaj kiv cua thiab tsim qauv siv hluav taws xob tsawg, IP40 qib kev tiv thaiv kom ntseeg tau kev ua haujlwm hauv ib puag ncig hnyav. LED qhov taw qhia yog pab tau los saib xyuas thiab tswj cov xwm txheej ntawm kev sib txuas hauv network. DIN rail installation thiab dav kev khiav hauj lwm kub (-40 ~ ntxiv rau 75 degree), nws ua kom tiav cov kev lag luam ib puag ncig, muaj peev xwm muab txhim khu kev qha thiab sai kev daws rau koj Ethernet ntaus ntawv. txhawb zog QoS thiab ACL zog,
|
Qauv |
HS5750-30TX |
|
khoom configuration |
24 * 2.5G Hluav Taws Xob Chaw nres nkoj, 6 * 1000M SFP / 10GE SFP ntxiv, |
|
Lub cev interface |
10 Gigabit Optical Ports: 6 * 10Gigabit optical ports, 10 Gigabit optical ports tuaj yeem hloov kho rau Gigabit optical ports, hom SFP / SFP ntxiv / LC; |
|
2.5G Hluav Taws Xob Chaw nres nkoj: 24 * 2.5G hluav taws xob chaw nres nkoj, cov chaw nres nkoj hluav taws xob tuaj yeem hloov kho rau 10/100/1000M, hom RJ45; |
|
|
Console Chaw nres nkoj: kev tswj qhov chaw nres nkoj, siv rau kev tswj kab lus, hom RS232; |
|
|
Mechanical qauv |
Chassis plhaub: hlau plhaub, cua txias cua sov dissipation; |
|
Chassis loj: Dimensions (ntev * dav * qhov siab) (mm) 440 * 210 * 44; |
|
|
Txoj kev txhim kho: txheem 19-inch 1U khib-mounted installation; |
|
|
Nta |
Txhawb 5 chaw nres nkoj 10Base-T / 100Base-TX / 1000Base-TX Ethernet |
|
-40 ~ ntxiv rau 75 degree ua haujlwm kub |
|
|
Txhawb ACL kev ruaj ntseg filtering mechanism, muab kev ruaj ntseg tswj kev ua haujlwm raws li MAC, IP, L4 chaw nres nkoj thiab theem chaw nres nkoj; |
|
|
12 ~ 48VDC dav voltage fais fab mov input |
|
|
Txhawb cov neeg siv cov chaw taws teeb txheeb xyuas qhov tseeb raws li Tacacs ntxiv / Radius, txhawb cov neeg siv hauv zos authentication; |
|
|
Txhawb SP / WRR / SP ntxiv rau WRR qhov tseem ceeb algorithm kom ntseeg tau tias kev sib kis ntawm ntau yam kev pabcuam tseem ceeb ntws los ntawm kev thov; |
|
|
Tsis muaj kiv cua, siv hluav taws xob tsawg tsim |
|
|
Txhawb ntau qhov chaw nres nkoj mirroring tsom xam muaj nuj nqi, txhawb mirroring tsom xam raws li kev pab cuam txaus; |
|
|
Txhawb MAC chaw nyob rau kev kawm tus kheej |
|
|
Txhawb txoj cai raws li IPv4/6 unicast routing, thiab txhawb kev hloov pauv hloov pauv txoj cai; |
|
|
Txhawb CLI hais kom ua kab tswj raws li qhov chaw nres nkoj, Telnet, SSHv2; |
|
|
Txhawb RFC1213 SNMP network tswj; |
|
|
Txhawb kev tswj hwm kev teeb tsa raws li WEB nplooj ntawv; |
|
|
Ua haujlwm ib puag ncig |
Ua haujlwm kub: -15 degree -55 degree ; |
|
Cia kub: -40 degree -70 degree ; |
|
|
txheeb ze av noo: 10 feem pua -90 feem pua, tsis muaj teeb meem condensation; |
|
|
Kev siv fais fab |
Fais fab mov specifications: Ib leeg AC fais fab mov; |
|
input zog: AC: input 90-264V, 47-67Hz; |
|
|
Kev siv hluav taws xob tag nrho ntawm lub tshuab: tag nrho cov khoom siv hluav taws xob tsawg dua lossis sib npaug ntawm 22W, tsis siv zog siv tsawg dua lossis sib npaug li 13W; |
