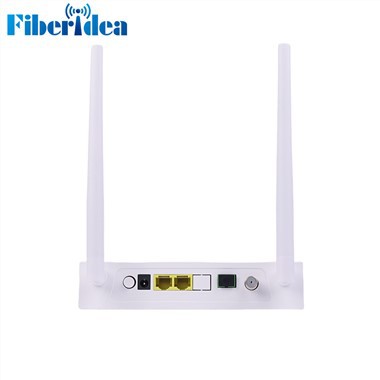

4GE WIFI CATV yog tsim los ua HGU (Home Gateway Unit) hauv cov kev daws teeb meem FTTH sib txawv. Daim ntawv thov kev pabcuam FTTH muab cov ntaub ntawv thiab kev pabcuam video.
4GE WIFI CATV yog raws li paub tab thiab ruaj khov, tus nqi-zoo XPON thev naus laus zis. Nws tuaj yeem hloov tau rau hauv EPON hom lossis GPON hom thaum nkag mus rau EPON OLT thiab GPON OLT.
4GE WIFI CATV txais kev ntseeg siab, kev tswj xyuas yooj yim, kev teeb tsa yooj yim thiab cov kev pabcuam zoo tau lees paub kom ua tau raws li kev ua haujlwm ntawm EPON Standard ntawm Tuam Tshoj Telecom CTC3.0 thiab GPON Standard ntawm ITU-TG.984.X
4GE WIFI CATV yog tsim los ntawm Realtek chipset 9607C.
|
Yam khoom |
Paub meej |
|
Qauv |
H8 |
|
PON interface |
1 G / EPON chaw nres nkoj (EPON PX20 ntxiv thiab GPON Class B ntxiv) |
|
Sab saum toj: 1310nm; Pem hauv ntej: 1490nm |
|
|
SC / APC connector |
|
|
Tau txais rhiab heev: Tsawg dua lossis sib npaug rau -28dBm |
|
|
Transmitting optical zog: 0 ~ ntxiv rau 4dBm |
|
|
Transmission nrug: 20KM |
|
|
LAN interface |
4 x 10/100/1000Mbps auto adaptive Ethernet interfaces, Puv/ib nrab, RJ45 connector |
|
WIFI interface |
Ua raws li IEEE 802.11b/g/n/ac |
|
2.4GHz Kev khiav hauj lwm zaus: 2.400-2.483GHz |
|
|
5.0GHz Kev khiav hauj lwm zaus: 5.150-5.825GHz |
|
|
Txhawb 2 * 2MIMO, 5dBi tus kav hlau txais xov sab nraud, tus nqi mus txog 867Gbps |
|
|
Kev them nyiaj yug: ntau SSID |
|
|
TX hwj chim: 11n--22dBm/11ac--24dBm |
|
|
CATV Interface |
RF, optical zog: ntxiv rau 2 ~ -18dBm |
|
Optical reflection poob: Ntau dua lossis sib npaug li 60dB |
|
|
Optical txais wavelength: 1550 ± 10nm |
|
|
RF zaus ntau: 47 ~ 1000MHz, RF tso zis impedance: 75Ω |
|
|
RF tso zis theem: Ntau dua lossis sib npaug rau 82dBuV (-7dBm optical input) |
|
|
AGC ntau yam: ntxiv rau 2 ~ -7dBm / -4 ~ -13dBm / -5 ~ -14dBm |
|
|
MER: Ntau dua lossis sib npaug rau 32dB(-14dBm optical input), ＞35(-10dBm) |
|
|
LED |
10 LED, Rau Status ntawm PWR, LOS, PON, LAN1, LAN2, LAN3, LAN4, 2.4G, 5.8G, Li qub (CATV) |
|
Push-khawm |
3 khawm rau Muaj nuj nqi ntawm lub hwj chim qhib / tawm, Rov pib dua, WPS |
|
Kev ua haujlwm |
Kub: 0 degree - ntxiv rau 50 degree |
|
Humidity: 10 feem pua -90 feem pua (tsis-condensing) |
|
|
Kev khaws cia |
Kub: -40 degree - ntxiv rau 60 degree |
|
Humidity: 10 feem pua -90 feem pua (tsis-condensing) |
|
|
Fais fab mov |
DC 12V / 1A |
|
Kev siv fais fab |
<6W |
|
Net nyhav |
<0.3kg |
